Lab 2: Part D
Joinery Tests
Form
Spring 2020
For this section I created four joints in vector to be laser cut on 1/2 inch wood including:

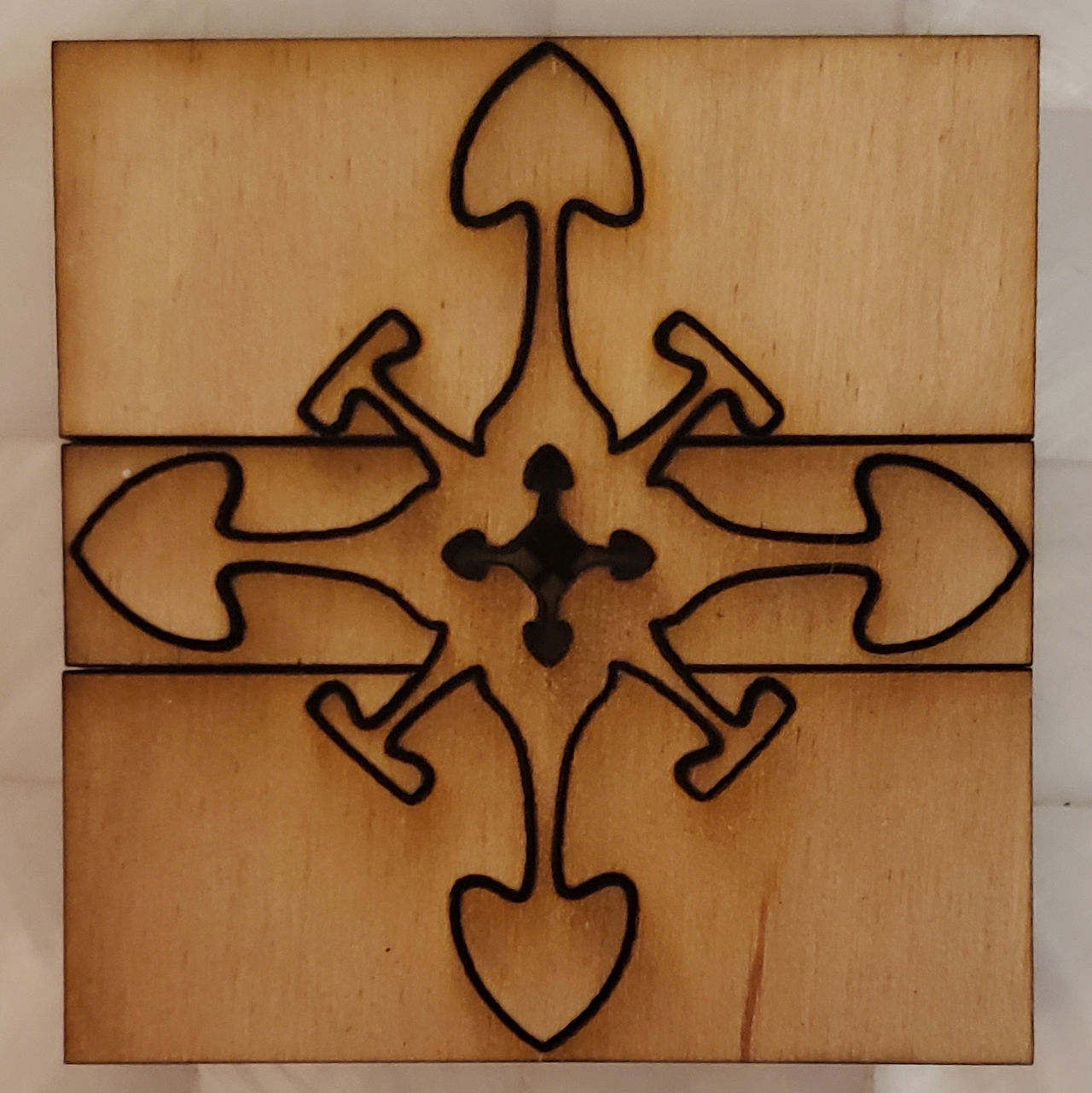

Modified Cross Miter Joint with Jigsaw Key (connects four flat pieces with a key shaped like a flower, requires two layers)
Ginko Scarf with Stub Tendons (connects 2 flat pieces)
Lengthening with Modified Meandering/Stub Key (connects two flat pieces but requires 2 layers)
Perpendicular Finger Tenons joint (connects two pieces at a 90 degree angle)
